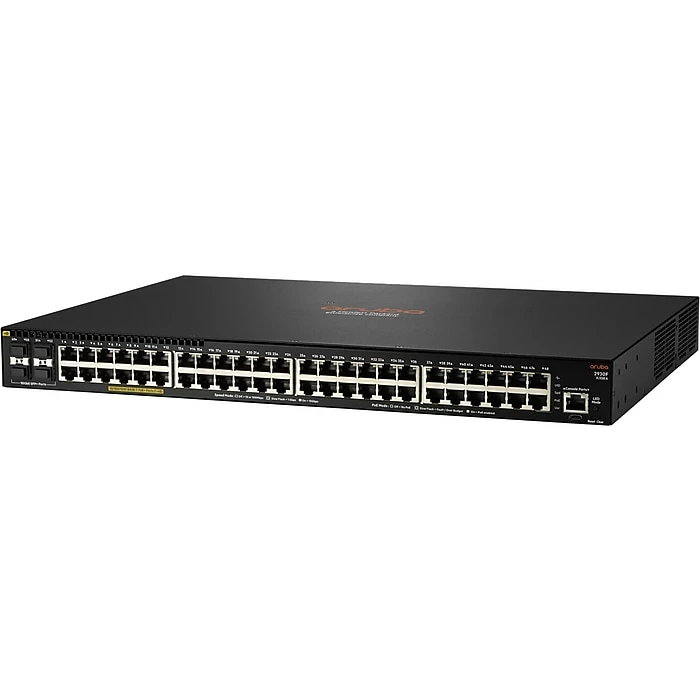

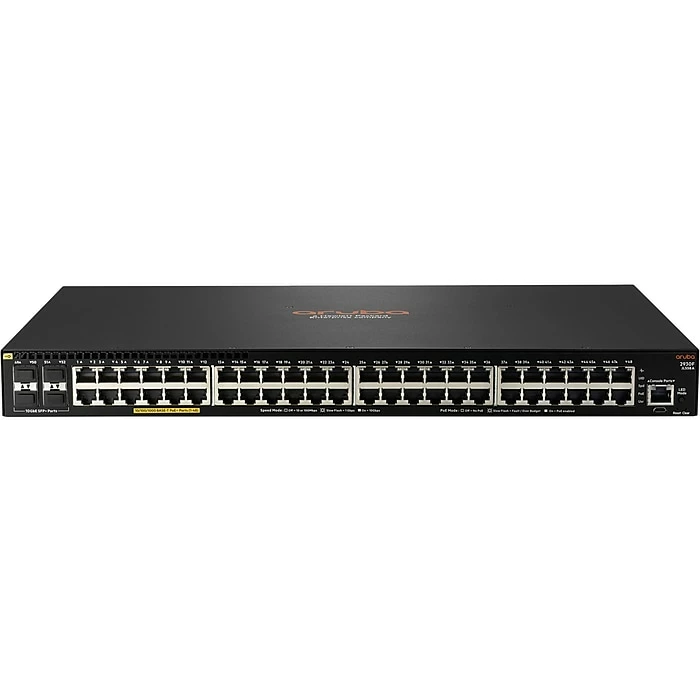

Aruba 2930F JL558A#AC3 48-Port Gigabit Ethernet Rack Mountable Switch

The Aruba 2930F Switch Series is designed for customer creating digital workplaces optimized for mobile users. These Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager, Aruba AirWave and cloud-based Aruba Central. Virtual Switching Framework (VSF) provides stacking scale and simplicity for enterprise edge, SMB and branch offices. The 2930F delivers performance and value with support for RIP routing, Access OSPF, 10GbE uplinks, up to 740W PoE+, robust QoS, and requires no software licensing.

• Simplify IT operations with managed Gigabit Ethernet rack mountable switch for enterprise edge, SMB, and branch office networks
• 48 RJ-45 autosensing 10/100/1000 PoE+ ports with up to 740W power capacity and 4 SFP+ 1/10GbE ports PHY-less
• Easy to deploy and manage with Aruba ClearPass Policy Manager and Aruba AirWave
• Throughput up to 112 Mpps
• Dimensions: 1.73″H x 17.42″W x 12.77″D
• Power consumption: 49.9W idle, 980W maximum with PoE+
• Simplify with zero touch provisioning (ZTP) and cloud-based Aruba Central support
• Virtual Switching Framework (VSF) virtualizes up to eight physical switches into one logical device for simpler, flatter, more agile networks
• Robust Layer 3 feature set includes Access OSPF, static and RIP routing, ACLs, sFlow, IPv6 with no software licensing required
• Designed with a powerful Aruba ProVision ASIC, to enable the mobile campus with SDN optimizations, low latency, increased packet buffering, and adaptive power consumption
• Increase performance with selectable queue configurations and associated memory buffering that meets your specific network application requirements
• Flexible authentication options include standards based security protocols such as 802.1X, MAC and Web Authentication, to enhance security and policy-driven application authentication
• Powerful, multilevel-access security controls include source-port filtering, RADIUS/TACACS+, SSL, Port Security, and MAC address lockout
• RMON and sFlow provide advanced monitoring and reporting capabilities for statistics, history, alarms and events
• Out-of-band Ethernet management port keeps management traffic segmented from your network data traffic
• Lifetime manufacturer limited warranty

Specifications
