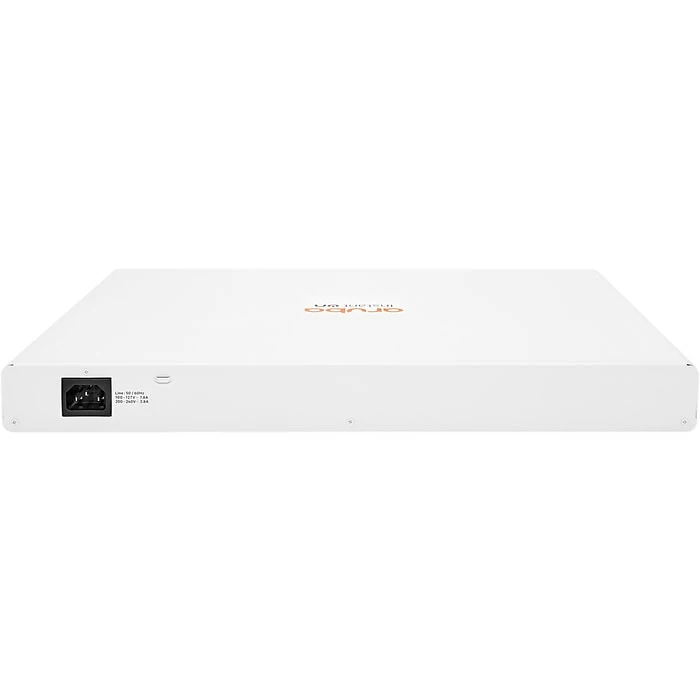

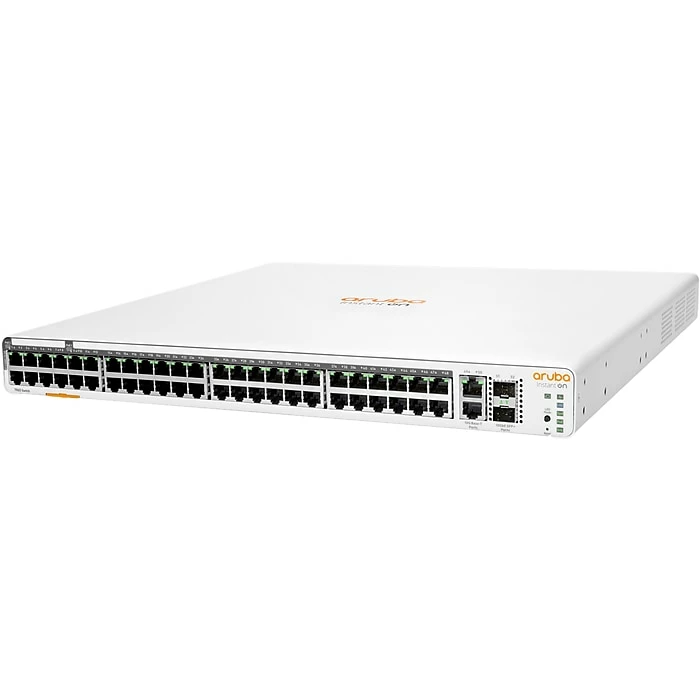

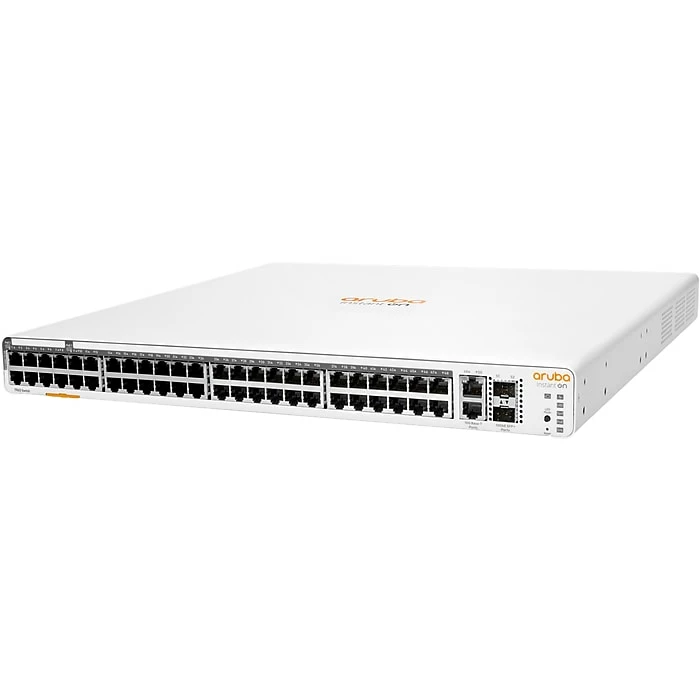

Aruba Instant On 1960 JL809A 48-Port Gigabit Rack Mountable Switch

Aruba Instant On 1960 Switch Series includes four 10GbE connections to connect to servers, network storage devices, or to other switches. Two connections of 10GBASE-T deliver 10GbE over copper Category 6a cabling for simple, affordable, high-bandwidth connections to a maximum distance of 100 meters. With PoE models, up to 30W PoE power delivery is available for Class 4 PoE devices like access points, surveillance cameras and VoIP phones, and up to 60W PoE power delivery is available for Class 6 PoE devices like pan-tilt zoom cameras and video-enabled IP-phones. Each switch has a pull-out tag, known as a luggage tag, on the front panel of the switch. The tag includes a QR code that includes switch ID information (SKU number, SKU name, serial number, and MAC address) for easy switch onboarding through Instant On mobile app. The Aruba Instant On mobile app and cloud-based web portal make cloud-managed stacking easy — just follow the recommendations to stack up to four Aruba Instant On 1960 switches and manage as a single entity. The Aruba Instant On mobile app automatically detects members, making multiple stack members easy to setup and manage remotely. Automated configurations and streamlined workflows allow users to manage all stack members through one single dashboard without the need for device reboot. The Aruba Instant On 1960 Switch Series lets you use VLANs and Access Control Lists to set bounds on what data can be seen by which users. Leverage 802.1X with a RADIUS server to ensure only known and authorized users can access your network. Supports Automatic denial-of-service (DOS) monitors and protects the network against malicious attacks.

• High performance, smart-managed stackable switch designed for small and growing businesses, fast and easy set-up and security you can trust
• This model has 48 x RJ45 10/100/1000 PoE (CL4 and CL6), 2 x SFP+ 10GbE, 2 x 10GBASE-T ports
• Use the Instant On mobile app, cloud-based web portal or the local web GU to quickly setup, monitor and manage the device
• Throughput: 131 Mpps maximum; switching capacity: 176Gbps
• Dimensions: 1.73″H x 17.42″W x 15.86″D
• Power consumption at 100-127V: 790W maximum, 60W idle, total 600W PoE power
• Powered by single core ARMv7 Cortex-A9 800MHz CPU
• Lifetime manufacturer limited warranty
