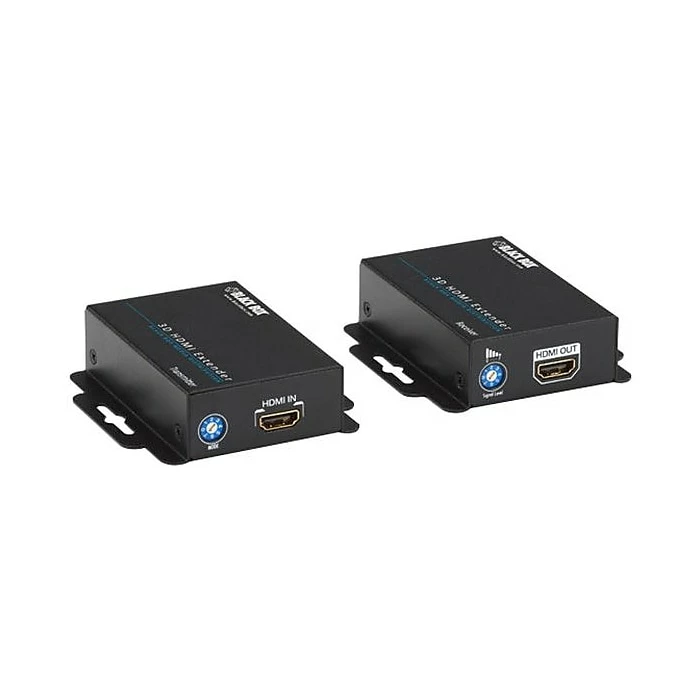

Black Box® VX-HDMI-TP 40 M 3D HDMI Catx Audio/Video Extender, Black

The Black Box® 40 m 3D HDMI Catx audio/video extender has two HDMI in/out and two RJ-45 in/out connectors. Featuring solid copper conductor, this extender ensures better performance. It supports 480i/480p, 720p, 1080i/1080p resolution at 60 Hz up to 36-bit color. The extender works well with bandwidth of up to single-link 225 MHz. It offers 8-level digital signal control using rotary switch on the receiver.

• Catx audio/video extender to support HDMI video resolutions
• Dimensions: Transmitter and receiver units: 1″ x 2.4″ x 3.6″
• Connectors: Two HDMI in/out, two RJ-45 in/out
• Solid copper conductor for better conductivity
• Supports resolution of 480i/480p, 720p, 1080i/1080p at 60 Hz up to 36-bit color
• Color: Black
• Bandwidth: Single-link 225 MHz (6.75 Gb/s)
• Audio: Up to 7.1-channel surround sound or stereo digital audio
• Controls: Equalization/AV mode: 8-level digital signal control using rotary switch on the receiver
• Power supply: 100-240 VAC, 50 – 60 Hz input, 5 VDC, 2 A output, Consumption: 4 W (Tx), 1.5 W (Rx)
• Weight: 0.5 lbs. (Transmitter), 0.4 lbs. (Receiver)
• Comes with 3 years warranty

Specifications
