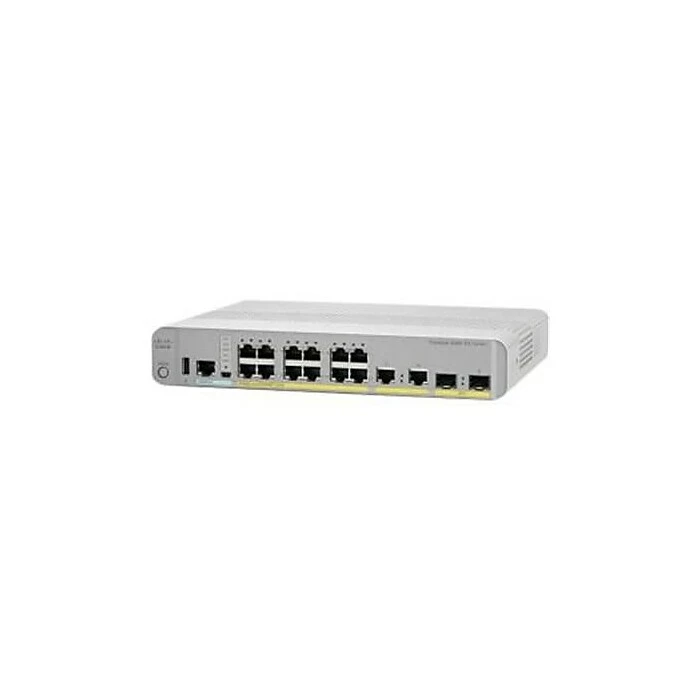

Ciscoâ„¢ Catalyst 3560-CX WS-C3560CX-12PC-S 12 Port Gigabit Ethernet PoE Managed Switch with 10GE Uplink
- 12-Port Gigabit Ethernet PoE managed switch with 10GE Uplink is ideal for offices, classrooms, hotels, retail stores and other enterprise locations
- Dimensions: 1.75″H x 10.6″W x 9.4″D
- Suitable with PC
- Comes in gray color
- Interface/ports: 12 x RJ-45 PoE Gigabit Ethernet Network, two RJ-45 10 Gigabit Ethernet Uplink, two Gigabit Ethernet Expansion SFP Slot
- System management: DHCP, RMON, VLAN, SNMP v1, 2c, 3, Telnet, CLI, QoS
- Security: Cisco TrustSec®, Threat Defense
- Meets IEEE 802.1D, 802.1p, 802.1Q VLAN, 802.1s, 802.1w, 802.1x, 802.1AB, 802.3ah, 802.3x, 802.3 10BASE-T and 802.3u, 802.3z standards
- Data transfer rate: 10/100/1000 Mbps, Forwarding rate: 23.8 mpps, Switching capacity: 24 Gbps
- RAM: 512MB DRAM, Flash memory: 128MB
- Layer supported: 3, Media type supported: Twisted Pair, optical
- Indicators: Per-port status: Link integrity, disabled, activity, speed, full-duplex, system status: System, link status, link duplex, link speed
- PoE power budget: 240 W
- MTBF: 553140 hrs, Heat dissipation: 1023.6 BTU/hr, Jumbo frames: 9198 bytes
- Power supply: 110 – 240 VAC, 3.25 – 1.5 A internal, Power consumption: 26.3 W, PoE power: 30 W
- Form factor: Desktop, rack-mountable, rail-mountable
- Meets RoHS, CLEI, UL, CAN/CSA, IEC 60950-1, CE, IEC, FCC Part 15, CFR 47, Class A, EN 55022 and EN 55024 (CISPR24) certifications and standards
- Weight: 5.1 lbs.
- Comes with lifetime limited warranty
Specifications
| Data Transfer Rate | 10/100/1000 Mbps |
|---|---|
| Depth in Inches | 9.4 |
| Height in Inches | 1.75 |
| Max. Data Transfer Rate (Mbps) | 1000 – 1499 |
| Network Management Type | Managed Switch |
| Number of Ethernet Ports | 12 |
| Performance Class | Gigabit Ethernet |
| Power over Ethernet | Yes |
| SNMP | v1, v2c, v3 |
| Switch Form Factor | Desktop, Rack Mountable |
| True Color | Gray |
| Warranty Information | Limited Lifetime Warranty |
| Weight (lbs.) | 5.1 |
| Width in Inches | 10.6 |
