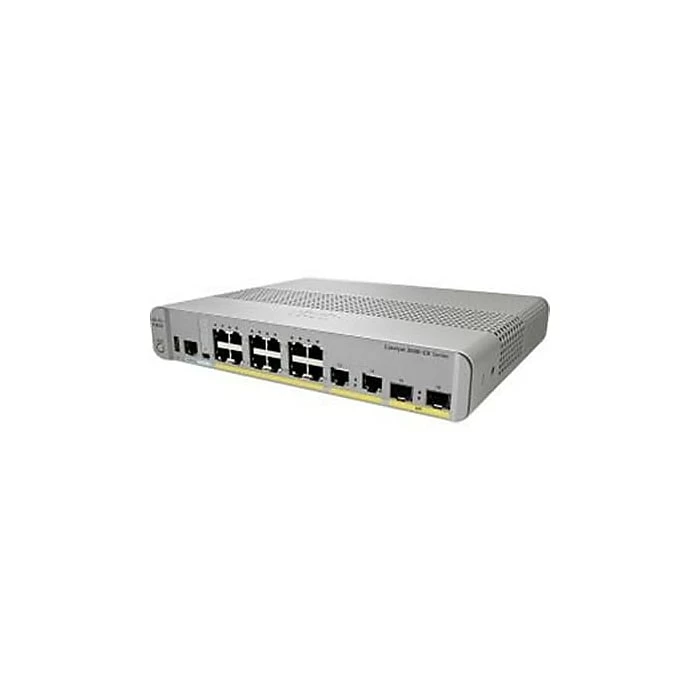

Cisco™ Catalyst 3560-CX WS-C3560CX-8PC-S 8 Port Gigabit Ethernet PoE Managed Switch

Cisco™ Catalyst 3560-CX WS-C3560CX-8PC-S 8 Port Gigabit Ethernet PoE Managed Switch

• 8-Port Gigabit Ethernet PoE managed switch are ideal in offices, classrooms, hotels, retail stores and other enterprise and branch locations
• Dimensions: 1.75″H x 10.6″W x 9.4″D
• Suitable with PC
• Comes in gray color
• Interface/ports: Eight RJ-45 PoE Gigabit Ethernet Network, two RJ-45 Gigabit Ethernet Uplink, two Gigabit Ethernet Expansion SFP Slot
• System management: DHCP, RMON, VLAN, SNMP v1, 2c, 3, Telnet, CLI, QoS
• Security: Cisco TrustSec®, Threat Defense
• Meets IEEE 802.1D, 802.1p, 802.1Q VLAN, 802.1s, 802.1w, 802.1x, 802.1AB, 802.3ad, 802.3af, 802.3ah, 802.3 10BASE-T and 802.3u, 802.3z standards
• Data transfer rate: 10/100/1000 Mbps, Forwarding rate: 17.9 mpps, Switching capacity: 24 Gbps
• RAM: 512MB DRAM, Flash memory: 128MB
• Layer supported: 3, Media type supported: Twisted Pair, optical
• Indicators: Per-port status: Link integrity, disabled, activity, speed, full-duplex, system status: System, link status, link duplex, link speed
• PoE power budget: 240 W
• MTBF: 569530 hrs, Heat dissipation: 1023.6 BTU/hr, Jumbo frames: 9198 bytes, PoE power: 30 W
• Power supply: 110 – 240 VAC, 3.25 – 1.5 A internal, Power consumption: 24.4 W
• Form factor: Desktop, rack-mountable, rail-mountable
• Meets RoHS, CLEI, UL, CAN/CSA, IEC 60950-1, CE, IEC, FCC Part 15, CFR 47, Class A, EN 55022 and EN 55024 (CISPR24) certifications and standards
• Weight: 5 lbs.
• Comes with lifetime limited warranty
