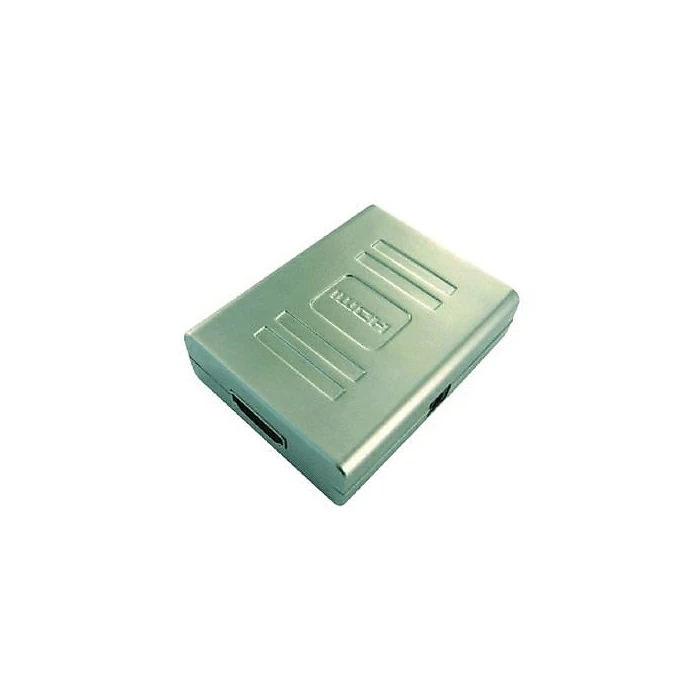

Comprehensive® CRP-HD201 4.95 Gbps HDMI Repeater

The Comprehensive® CRP-HD201 HDMI repeater has a DC jack with power consumption of 5 V and 0.5 A. It supports resolution up to 1920×1080. It connects to existing cables to achieve cable extensions beyond 30 m.

• Repeater connects to existing cables to achieve cable extensions
• Data transfer speed: Up to 4.95 Gbps video
• Ports: HDMI input, HDMI output, DC jack
• Dimensions: 0.7″H x 1.7″W x 2.2″D
• Power: 5 V, 0.5 A consumption
• Supports resolutions: Up to 1920 x 1080, graphic standard: 1080i/1080p and UXGA, video bandwidth: 225 MHz
• Material: Aluminum, signal transmission distance: 70 m max (50 m input, 20 m output), cable wire size: 24 AWG
• HDMI Repeater to facilitate the transfer of high definition digital data over high quality HDMI cables, AC adapter is optional
• It will eliminate digital noise (sparkles) to ensure receive perfect HDTV picture after long cable transmission
• Regenerates the incoming HDMI signal by decoding & re-encoding it to a new standard HDMI signal so it can extend the transmission range
• Repeater for HDMI can be used in combination with existing cables to achieve cable extensions beyond 30 m, plug and play, easy to install
• Repeater can correct digital error and provide 40 dB input equalization to compensate for cable transmission loss, DVI compatible with use of adapters

Specifications
