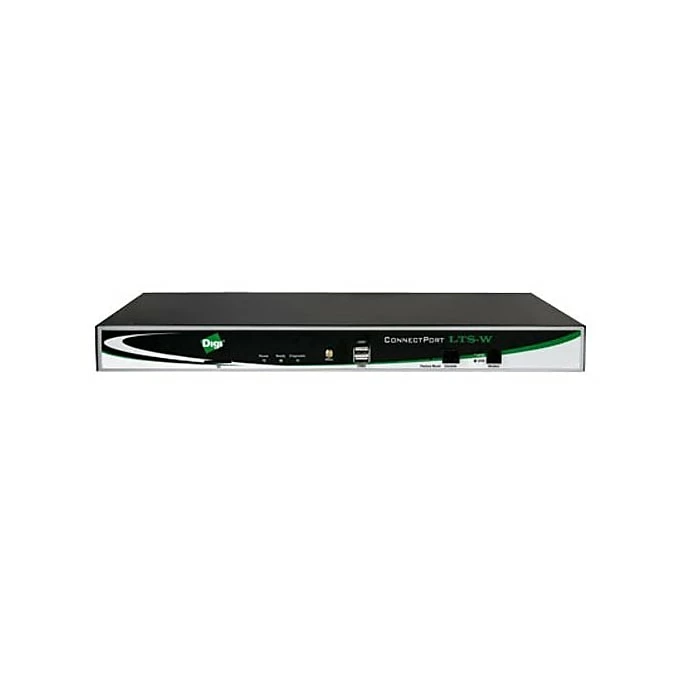

Digi® ConnectPort® LTS 16-Ports Terminal Server

Digi® ConnectPort® LTS MEI Console server has 10/100/1000Base-T network standard and supports twisted pair media. Server with 16 ports is used for target serial-to-IP applications including data center console port management, security and more.

• 16 ports 10/100/1000Base-T Gigabit Ethernet
• Form factor: Desktop, processor: Freescale MPC8314, 400 MHz, throughput: Up to 230 Kbps, management: HTTP/HTTPS, CLI or telnet, SNMP read and write
• Memory: 256MB SDRAM/34MB flash, operating systems: AIX, HP-UX, Linux®, SCO® Open Server™, SCO® UnixWare, Solaris™ (Intel), Solaris™ SPARC, Windows® XP, Windows Server® 2003, Windows® 2000/98/ME/NT, NCR Unix, MIP-RAS
• Software: RealPort®, python, port sharing (sockets only, not for RealPort), port logging (online and offline), line printer daemon
• Protocols: TCP/UDP, DHCP, telnet, Reverse telnet/SSHv2/SSL, IPv4/IPv6, security: Encrypted RealPort, SSHv2, SSL
• LEDs: Serial ports: Tx/Rx per port, Ethernet: Link/activity, power, ready, diagnostic, optional modem: DTR/DCD, serial ports: 16 RS-232 or RS-232/422/485software-selectable (MEI models)
• Serial connector: Digi 10-pin, Ethernet physical layer: Dual 10/100/1000 Mbps auto sensing, full or half duplex, USB ports: 2 USB 2.0 connectors, 500 mA max each port
• Console ports: 10-pin RJ-45 serial port for configuration, RPSMA connector: 1 for ZigBee wireless (W models only), RJ-11 connector: 1 for internal modem (W models only)
• Power requirements: Power input: 100 – 240 VAC, 50 – 60 Hz, 0.8 A, power consumption: 30 W max
• Operating temperature: 0 – 55 deg C
• Storage temperature: -20 – 66 deg C, relative humidity: 5 – 95% noncondensing
• Serial port protection(ESD): +/-15 kV, Ethernet isolation: 1500 VAC (rms)
• Safety: UL 60950-1, EN 60950-1, emissions/immunity: FCC Part 15, Subpart B, Class A, EN 55022 Class A, EN 55024
• Dimensions: 1.8″(H) x 17.4″(W) x 8.7″(D)
• Weight: 5.7 lbs.
