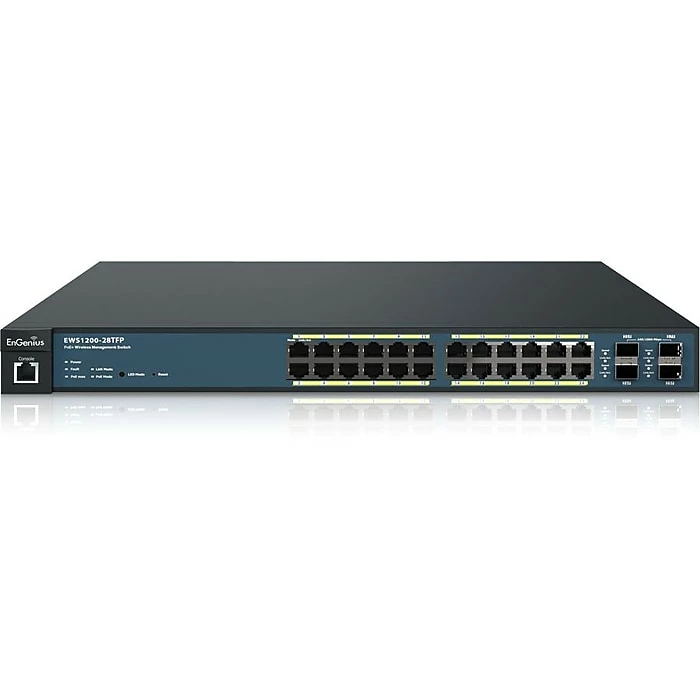

Product Highlights The EWS1200-28TFP features simplified network configuration, monitoring and management options along with an easy-to-use Web interface. Locally manage up to 50 Neutron EWS APs and centrally manage wired and wireless networks via ezMaster. Power compatible PoE+ devices such as IP cameras, VoIP phones, and APs. (24) 10/100/1000 Mbps Gigabit Ethernet PoE+ Ports; (4) SFP Ports 19″ Rackmount Supports 802.3af/at PoE & Total Budget of 410W 4 Types of In-Switch Network Management Options Network Troubleshooting, Monitoring & Email Alerts
- Features 24 networking ports to meet the requirements of the most demanding workgroups
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Can work as layer 3 routing for scalable network design
- Management capability provides control over setup and configuration of your network
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Rack mounting enables you to organize wires & secure cables for professional installation
Specifications
| Address Database Size | 8000 |
|---|---|
| Amperage (amps) | 6.5 |
| Auto-Detecting | No |
| Auto-Sensing | No |
| Data Transfer Rate | 10/100/1000 Mbps |
| Depth in Inches | 10.23 |
| Full-Duplex | Yes |
| Gaming | Non Gaming |
| Height in Inches | 1.73 |
| Input Voltage | 100 – 240 VAC |
| Jumbo Frame | No |
| LACP | Yes |
| Layer | 3 |
| Max. Data Transfer Rate (Mbps) | 1000 – 1499 |
| Module Support | Twisted Pair |
| Network Management Type | Managed Switch |
| Number of Ethernet Ports | 24 |
| Performance Class | Gigabit Ethernet |
| Port Mirroring | Yes |
| Power Supply | 100 – 240 VAC |
| Power over Ethernet | Yes |
| Protocols | QoS, IGMP, Spanning Tree, Port Mirroring, DHCP, CLI |
| Quality of Service | Yes |
| SNMP | v1, v2c, v3 |
| Series or Collection | Neutron |
| Switch Form Factor | Desktop, Wall Mountable, Rack-Mountable |
| True Color | Black |
| VLAN Support | Yes |
| Warranty Information | 1 Year |
