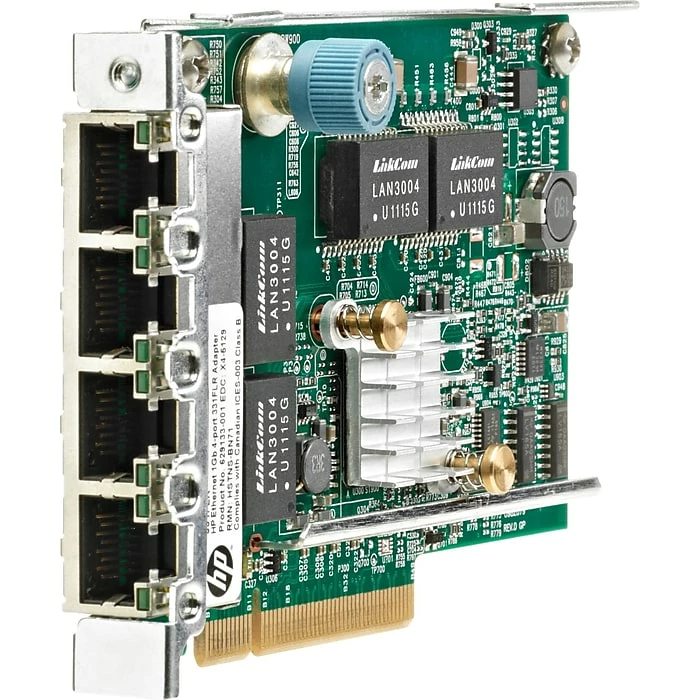

HP ® 629135-B22 331FLR 1Gbps Ethernet Network Adapter, 4 Ports

The HP ® 629135-B22 1 Gbps Ethernet network adapter is suitable for use with ProLiant Gen8 and Gen9 rack servers. It provides a single-chip solution in a FlexibleLOM form factor, which allows easy upgrade from 1 to 10Gb. The 4-port adapter provides maximum throughput and high port density for virtualization, security, server consolidation, network segmentation and other applications. This adapter offers a full duplex transfer rate of 8 Gbps to deliver superior network performance while enhancing response time.

• Network adapter is suitable for select HP ProLiant Gen8 and Gen9 rack servers
• Data transfer rate: 1 Gbps
• Has four RJ-45 Ethernet 10/100/1000Base-T ports, each at 2 Gbps full duplex for reliable connection
• Dimensions: 4.6″H x 3″W
• Features Broadcom BCM5719 installed processor for optimum performance
• Power consumption: 5.5 W
• Meets REACH, RoHS-6, WEEE, Green, UL, VCCI class B ITE, VCCI V-3, FCC class B, FCC part 15, EN 60950-1, EN 61000-3-2:2006 standards and certifications
• Effectively supports Jumbo frames, PXE and VLAN
• System requirement: Windows Small Business Server 2011 Essentials, Oracle Solaris 10, Red Hat Enterprise Linux 5.7, SuSE Linux Enterprise Server 10
• Host interface: PCI Express 2.0 x4, Connectivity technology: Wired
• Form factor: Plug-in card
• Network transport protocol: TCP/IP, UDP/IP, Remote management protocol: SNMP
• Media type supported: Twisted pair
• Features Energy efficient Ethernet, extended message-signaled interrupts (MSI-X), large send offload (LSO) and TCP segmentation offload
• Contains quick install card and product warranty statement
• Comes with limited warranty

Specifications
