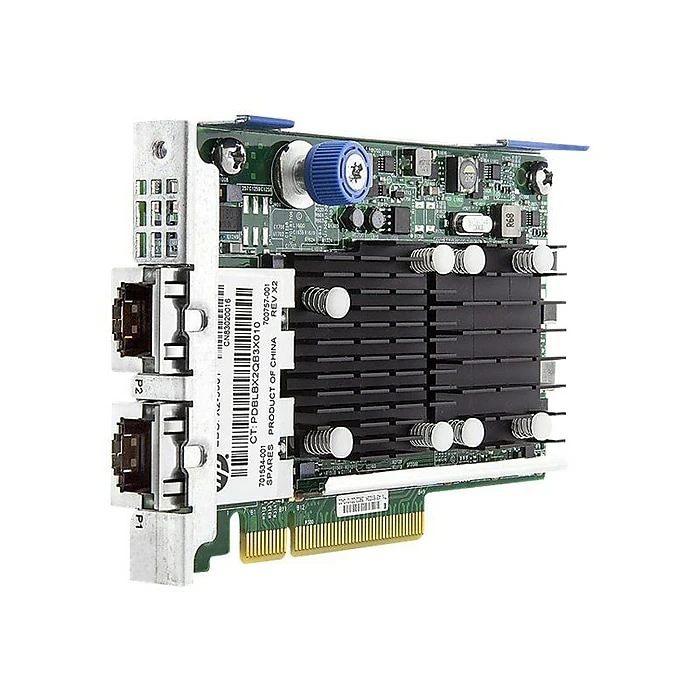

HP ® FlexFabric 700759-B21 2 Port 533FLR-T PCI Express Network Adapter For PC, Unix And ProLiant Server

The HP ® FlexFabric 700759-B21 2-port 533FLR-T PCI Express network adapter with 10GBase-T network technology, offers quick data transfer and efficient network connection. It features broadcom BCM57810S chipset processor for efficient performance. This plug in card network adapter is compatible with PC, Unix and ProLiant servers. It features eight RJ-45 network interface port and eight PCI Express host interface for reliable connectivity. This wired network adapter offers 40 Gbps aggregate bi-directional theoretical bandwidth data transfer.

• Network adapter optimizes Cloud efficiency
• Dimensions: 7.5″H x 2.3″W x 9.5″D
• Compatible with PC, Unix and ProLiant servers
• Form factor: Plug-in card
• Network and communication: 10GBase-T network technology
• Interface/ports: Two Network (RJ-45)
• Compatible with Windows Server 2008, HPC Server 2008, Multipoint Server 2011, SLES 10, 11 SP4 x86 and AMD 64 & EM 64T OS
• Host interface: PCI Express x8
• Network processor: Broadcom BCM57810S chipset
• Data transfer rate: Two ports, each at 20 Gbps full duplex and 40 Gbps aggregate full duplex theoretical bandwidth
• Connectivity technology: Wired
• Media type supported: Twisted pair, Standard: Category 6a
• Power source: 9 W maximum
• Features auto-negotiation, Jumbo Frames support, Large Send Offload (LSO), PXE support, Receive Side Scaling (RSS) and TCP Segmentation Offload
• Meets IEEE: 802.3, 802.3x, 802.2x, 802.3ad, 802.1Qaz, 802.1Qau, 802.1Qbb and 802.1Qbg,802.1ax certifications or standards
• Weight: 0.45 kg

Specifications
