HPE FlexFabric 5710 Switch Series are high density, low-latency switches, the perfect solution for bandwidth-intensive workloads. Two-tier network design delivers outstanding performance while protecting and extending existing Hewlett Packard Enterprise or 3rd party core network investments. Delivers up to 1,440 Gbps switching capacity for the most demanding applications. Low latency, under 1.5 µs 10GbE latency, provides improved throughput and fewer lost packets. The HPE FlexFabric 5710 Switch addresses small to mid-size organizations needing fixed high-performance and low-latency 1/10GbE top-of-rack data center switches for server connectivity The HPE FlexFabric 5710 Switch Series includes the HPE Intelligent Resilient Framework which reduces administrative touchpoints by making multiple physical switches appear as a single virtual switch from a management perspective.
- High-performance, low-latency data center top-of-rack (ToR) switch aimed at expanding port connectivity while adding local switching capacity

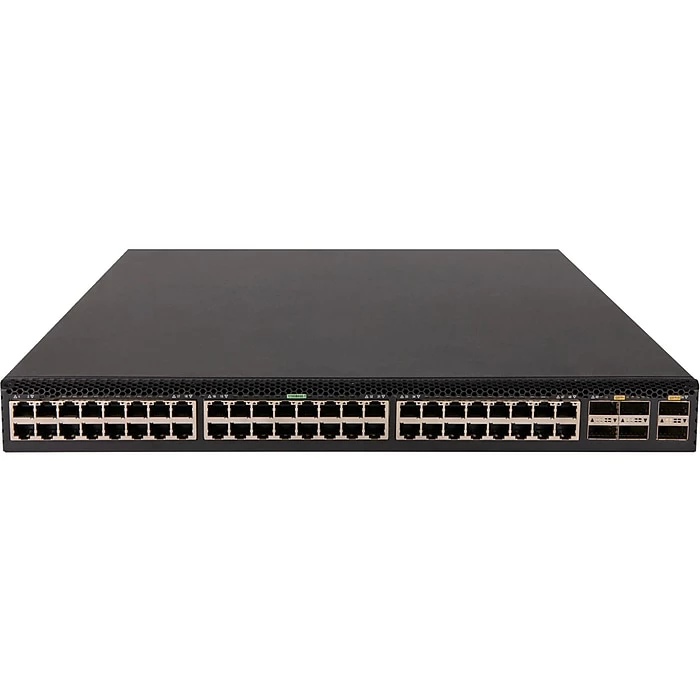

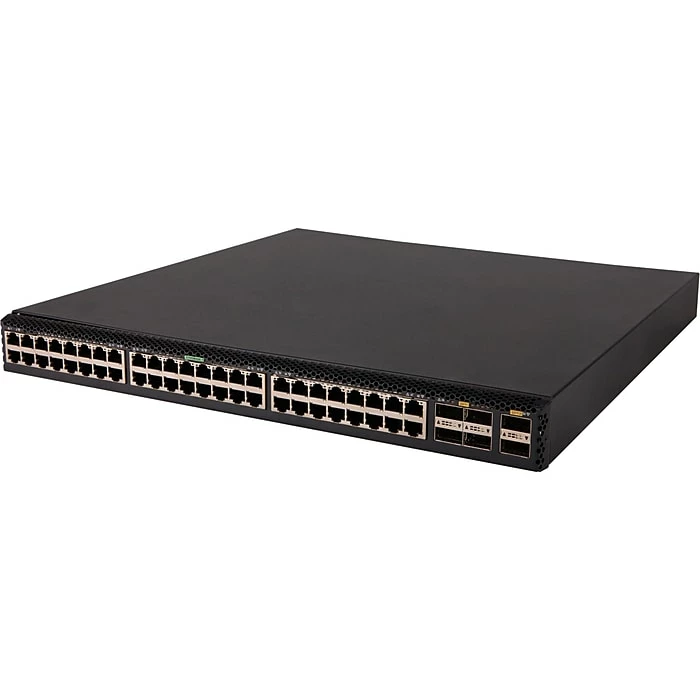

- This model has 40 x 1/10GBASE-T, 8 x 10GBASE-T, and 6 x QSFP+ or 2 x QSFP28 uplinks
- Can be managed with powerful management tools such as HPE IMC, CLI, out-of-band management, SNMP Manager, Telnet, FTP
- Delivers up to 1440Gbps switching capacity and 1071Mpps throughput for the most demanding applications
- Idle power consumption: 108W
- Low latency (10GbE latency under 1.5 microseconds) provides improved throughput and fewer lost packets
- Affordably priced, with full support for Layer 2, Layer 3, IPv4, and IPv6 networking protocols at no additional cost
- HPE Intelligent Resilient Fabric (IRF) for virtualization and two-tier networks
- Supports converged applications with data center bridging (DCB) features, such as priority-based flow control (PFC) IEEE 802.1Qbb, quantized congestion notification (QCN) IEEE 802.1Qau, enhanced transmission selection (ETS) IEEE 802.1Qaz, data center bridging capability exchange (DCBx) IEEE 802.1Qaz, and FCoE
- 1-year manufacturer limited warranty
Specifications
| Data Rate Performances | 10 Gbps |
|---|---|
| Depth in Inches | 15.75 |
| Gaming | Non Gaming |
| Gigabit Ethernet Uplink | 6 QSFP+ or 2 QSFP28 |
| Height in Inches | 1.73 |
| Input Voltage | 100 to 240VAC |
| Jumbo Frame | Yes |
| LACP | Yes |
| Layer | 3 |
| Network Management Type | Managed Switch |
| Number of Ethernet Ports | 48 |
| Performance Class | Gigabit Ethernet |
| Port Mirroring | Yes |
| Power over Ethernet | No |
| Quality of Service | Yes |
| SNMP | v1, v2, v3 |
| Series or Collection | FlexFabric 5710 |
| Stackable | Non-Stackable |
| Switch Form Factor | Rack Mountable |
| True Color | Black |
| VLAN Support | Yes |
| Warranty Information | 1 Year |
| Weight (lbs.) | 22.6 |
| Width in Inches | 17.32 |
