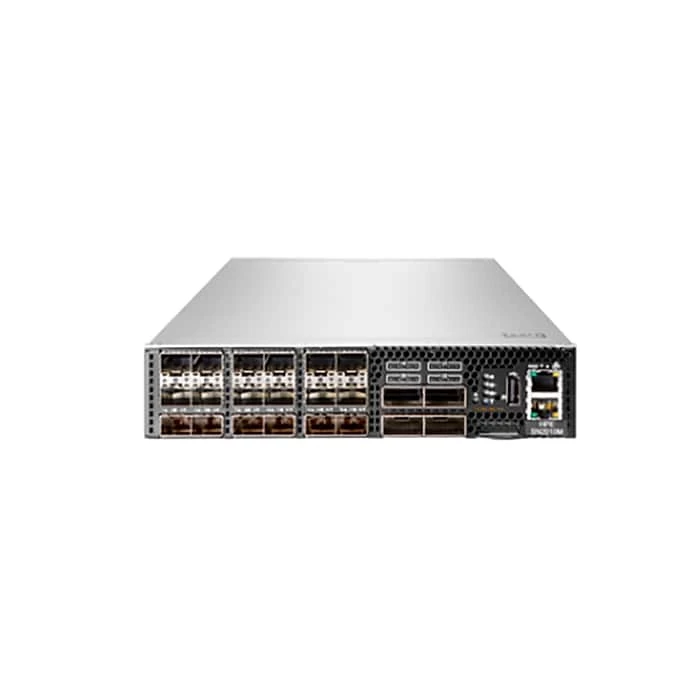

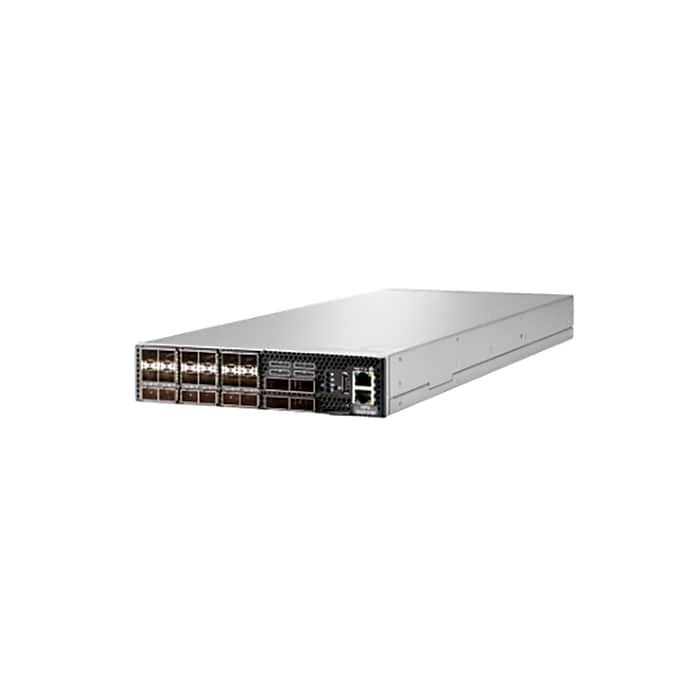

HPE SN2010M Q9E63A 18+4-Port Gigabit Ethernet Rack Mountable Switch

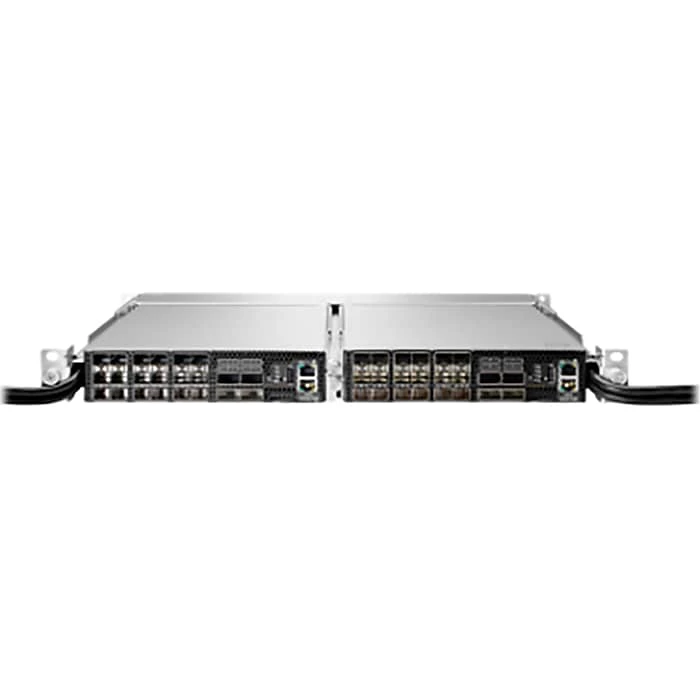

How can you provide fast, reliable, and cost-effective connectivity in the data center with predictable performance and investment protection? HPE SN2010M Ethernet switch is ideal for modern server and storage networks. Supporting port speeds of 1, 10, 25, 40, 50, and 100 GbE, they deliver predictable performance and zero packet loss at line-rate. Its unique port counts and half-width form factor allows up to two HPE SN2010M switch units to be deployed side-by-side for increased density and high-availability in a single rack unit making it the perfect top-of-rack (ToR) switch. Storage-specific features combined with an efficient design provides enterprise-level performance with attractive economics and outstanding ROI. Networks built on these switches are fast, reliable, and scalable while also being affordable. This makes these switches ideal for storage, hyperconverged, financial services, Big Data, and media and entertainment deployments.

• Ethernet switch is perfect for modern server and storage networks
• Equipped with 18 x 1/10/25GbE plus 4 x 40/100GbE Ethernet ports
• Supports out-of-band (OOB) dedicated interfaces (e.g. mgmt0, mgmt1) and in-band dedicated interfaces and features a standard 115200 baud rate RJ45 serial port that provides access to the CLI
• Dimensions: 1.72″H x 20″W x 7.878″D
• Features a robust implementation of data, control, and management planes, and offers a compact form factor and low power consumption
• Provides ultra-low latency of under 300ns port-to-port
• Buffering architecture provides superior microburst absorption for applications that burst data at random intervals
• Provides a flexible combination of ports, allowing for efficiency, simplifying scale-out environments, and saving on total cost of ownership
• Optimized port configuration enables high-speed rack connectivity to the server at 1/10GbE or 25GbE speeds with 40/100GbE uplink ports that allow for a variety of blocking ratios that suit specific application requirements
• With its optimization for RoCE, full buffer utilization, and zero packet loss combined into a small form factor with low latency make it the ideal switch for ESF (Ethernet Storage Fabric)
• Provides port density in a single-rack unit, allowing for higher capacity and efficiency, simplifying scale-out environments and saving on total cost of ownership
• 3-year manufacturer limited warranty
