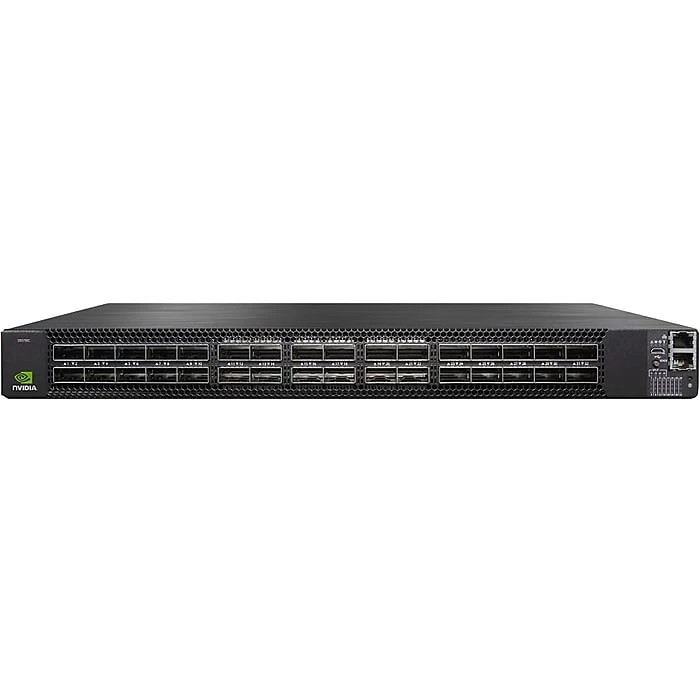

Mellanox SN3700C MSN3700-CS2F 32-Port Gigabit Ethernet Rack Mountable Switch

The Mellanox SN3700C is a 1U 32-port 100GbE open Ethernet network spine that can also be used as a high density 10/25GbE leaf when used with splitter cables. The SN3700C switch allows for maximum flexibility, with ports spanning from 1GbE to 100GbE and port density that enables full rack connectivity to any server at any speed, and a variety of blocking ratios. SN3700C ports are fully splittable to up to 128X 10/25GbE ports.

• This switch allows for maximum flexibility, with ports spanning from 1GbE to 100GbE and port density that enables full rack connectivity to any server at any speed, and a variety of blocking ratios
• Contains 32 QSFP28 100GbE ports
• Preinstalled with NVIDIA Onyx, a home-grown operating system utilizing common networking user experiences and a CLI industry standard
• Provides up to 6.4Tbps throughput
• Dimensions: 1.72″H x 16.84″W x 22″D
• Contains two power supplies (AC); 242W typical power
• Features dual-core x86 CPU, 8GB RAM, 32GB SSD memory
• Bare metal including ONIE image, installable with any ONIE-mounted OS; ONIE-based platforms utilize the advantages of Open Networking and the Spectrum-2 ASIC capabilities
• Hardware-accelerated histograms track and summarize queue depths at submicrosecond granularity
• Features Inband Network Telemetry (INT) ready hardware streaming telemetry, 512K on-chip flow counters
• Fully shared 42MB packet buffer provides a fair, predictable, and high-bandwidth data path
• Consistent and low cut-through latency
• Robust RoCE transport to power NVMe over fabric and machine-learning applications that leverage NVIDIA GPUDirect
• VXLAN scale features 10x more tunnels and tunnel endpoints than others
• 512K shared forwarding entries flexibly shared across ACL, LPM routes, host routes, MAC, ECMP, and tunnel applications
• Comprehensive Layer 2, Layer 3, and RoCE
• Offers advanced network virtualization with high-performance single-pass VXLAN routing and IPv6 segment routing, more than 100000 cloud-scale NAT sessions, programmable pipeline that can programmatically parse, process, and edit packets, deep packet inspection 512B deep
• 1-year manufacturer limited warranty
