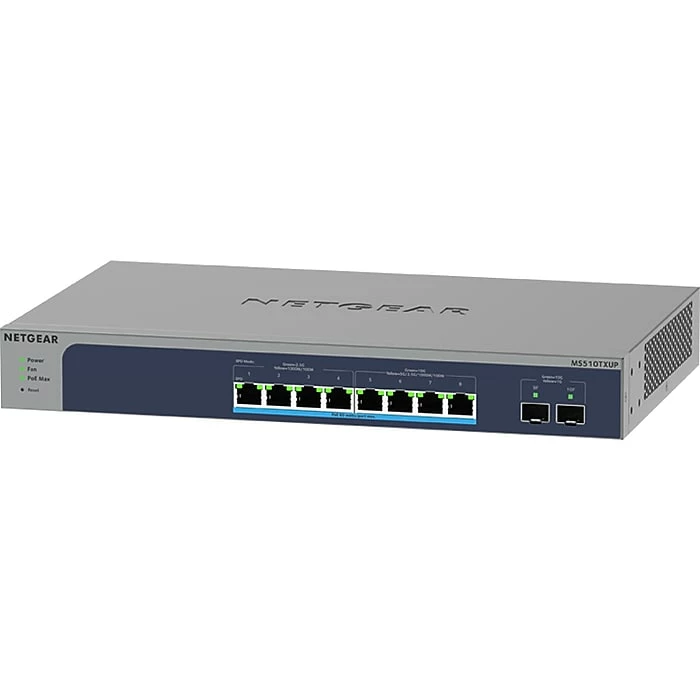

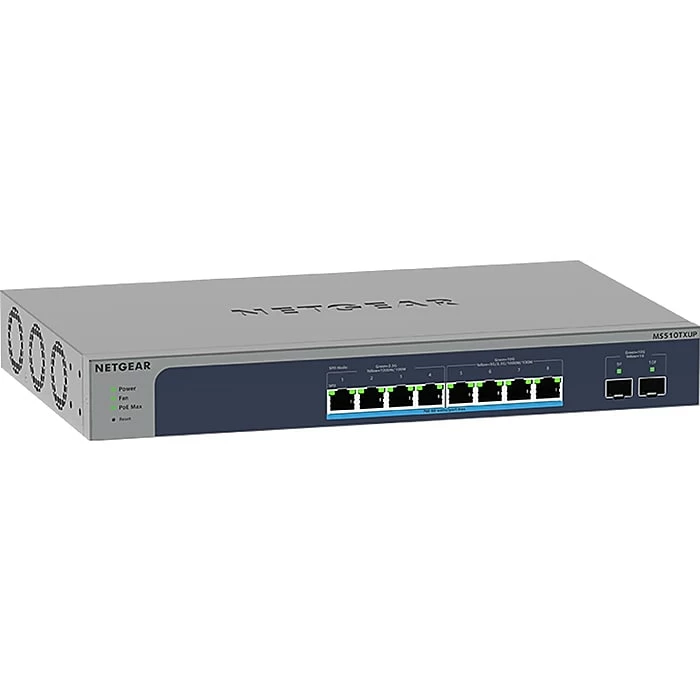

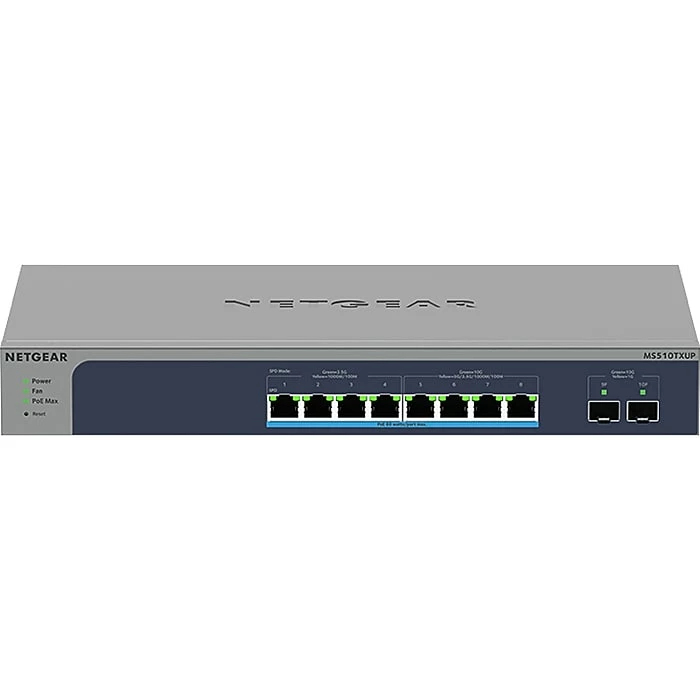

Introducing the NETGEAR MS510TXUP Multi-Gigabit/10G Ethernet Ultra60 PoE++ Smart Switch with 2 SFP+ Ports and 295W PoE budget for WiFi 6 Access Point connectivity and power.
- Four 1G/2.5G Ethernet ports and Four Multi-Gig/10G Ethernet ports
- 8 PoE++ ports with 295W total power budget
- 2 x 10G SFP+ ports
- Management software with easy-to-use GUI interface offers secure setup, access, and SNMP (NMS 300) management. Includes NETGEAR Insight to remotely manage your networks from anywhere.
- Supports desktop or rackmount placement, and includes all the necessary mounting hardware in the box
- Reduces fan noise to protect your home office or business environment.
- Covered by ProSAFE, an industry-best Lifetime Limited Hardware Warranty, Next Business Day Replacement and 24/7 chat with a NETGEAR expert
- Designed to optimize power usage lowering its cost to operate. Most models are compliant with IEEE802.3az Energy Efficient Ethernet mode.
- Every NETGEAR Network switch is rigorously tested for reliability, quality, and performance.
- Dimensions in Inches: 13L x 8.12W x 1.7H; Weight in Pounds: 5.5
Specifications
| Data Rate Performances | 10/100/1000Base-T |
|---|---|
| Data Transfer Rate (Gbps) | 10 |
| Depth in Inches | 8.12 |
| Gaming | Non Gaming |
| Height in Inches | 1.7 |
| Jumbo Frame | 10240 Bytes |
| LACP | Yes |
| Layer | 2 |
| Max. Data Transfer Rate (Mbps) | More than 3000 |
| Module Support | SFP, SFP+ |
| Network Management Type | Smart Switch |
| Number of Ethernet Ports | 10 |
| Performance Class | Gigabit Ethernet |
| Power over Ethernet | Yes |
| Protocols | IEEE 802.1D spanning tree protocol, IEEE 802.1w rapid spanning tree protocol, IEEE 802.1s multiple spanning tree protocol |
| Quality of Service | Yes |
| SNMP | v1, v2, v3 |
| Series or Collection | Pro |
| Switch Form Factor | Desktop, Rack Mountable |
| True Color | Gray/Blue |
| VLAN Support | Yes |
| Warranty Information | Limited Lifetime Warranty |
| Weight (lbs.) | 5.53 |
| Width in Inches | 13 |
