NETGEAR’s unmanaged JGS524 switch makes it affordable to take Gigabit to the desktop. This unmanaged 10/100/1000 Gigabit Ethernet switch provides high-speed connectivity for small office networks at an economical price a savvy business owner can’t ignore. All 24 switched 10/100/1000 ports deliver up to 2000Mbps throughput, up to 48Gbps of backplane bandwidth, and Auto Uplink technology to adjust for straight-through or crossover cables. This high-performance switch can combine 10, 100 and 1000Mbps devices within a network, and is conveniently compact for either the desktop or rack mounting. Ideal for work groups, departments or any small network looking for the ultra fast desktop connections.;Features;24 10/100/1000 ports; Powerful, non-blocking backplane; Affordable enough for desktop connections; Flexible Auto Uplink Technology makes the right link; Rack mount kit included; Package Contents;24-port Gigabit Ethernet Switch JGS524;Power adapter; Installation guide; Rack-mount kit; Warranty/Support information card

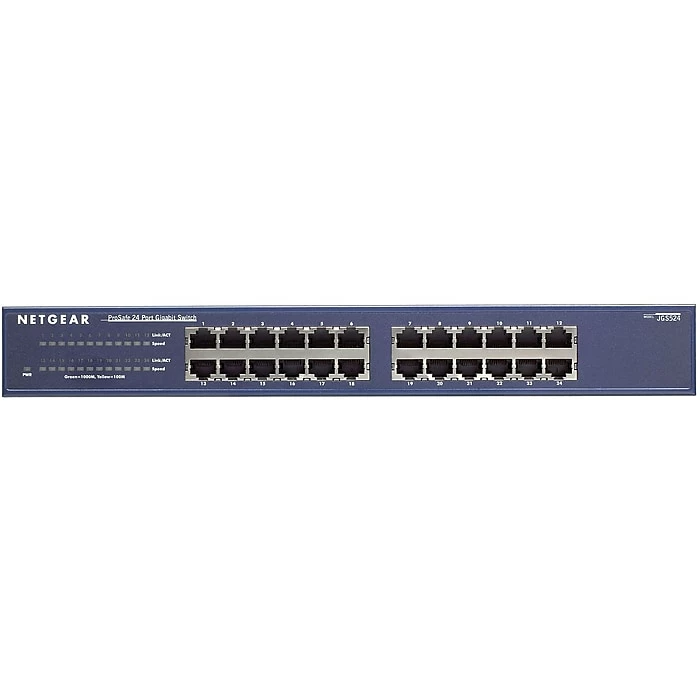

- 24-port 10/100/1000BASE-T (RJ-45) Gigabit Ethernet unmanaged rack-mountable switch
- Integrates 10, 100 and 1000 Mbps devices within a network
- Silently delivers up to 2000 Mbps on each port
- Certifications and standards: CE Class A, including EN 55022, (CISPR 22) and EN 55024, FCC Part 15 Class A, VCCI Class A, C-Tick Class A, KCC, CCC, UL, RU EAC
Specifications
| Address Database Size | 8000 |
|---|---|
| Auto-Sensing | Yes |
| Data Rate Performances | 48 Gbps |
| Data Transfer Rate | 10/100/1000 Mbps |
| Depth in Inches | 6.7 |
| Full-Duplex | Yes |
| Gaming | Non Gaming |
| Height in Inches | 1.7 |
| Input Voltage | 100 – 240 V |
| Jumbo Frame | 9000 Byte |
| Max. Data Transfer Rate (Mbps) | 1000 – 1499 |
| Network Management Type | Unmanaged Switch |
| Number of Ethernet Ports | 24 |
| Performance Class | Gigabit Ethernet |
| Power Supply | Internal power supply |
| Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3 CAMA/CD, IEEE 802.3az |
| Quality of Service | Yes |
| SNMP | No |
| Series or Collection | ProSAFE |
| Switch Form Factor | Desktop, Rack Mountable |
| True Color | Blue |
| Warranty Information | Limited Lifetime Warranty |
| Weight (lbs.) | 3.64 |
| Width in Inches | 12.9 |
