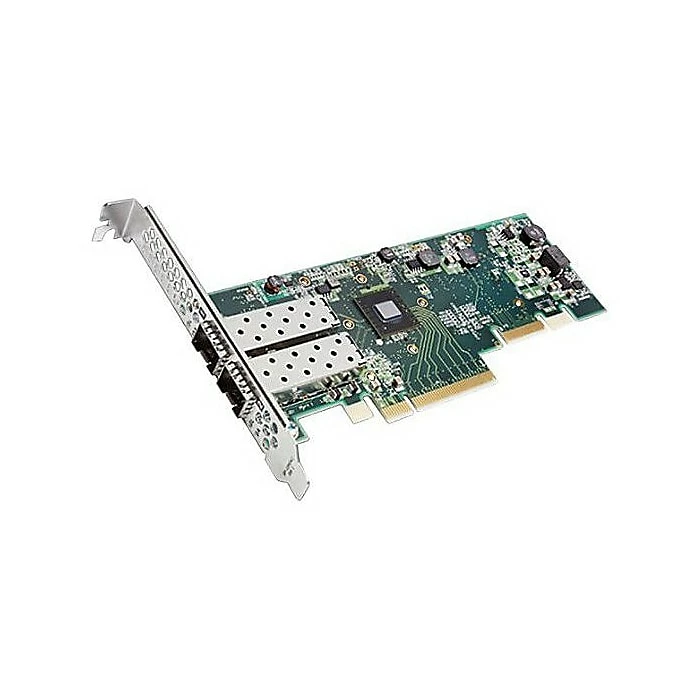

Solarflare® Flareon Ultra SFN8522-PLUS 2-Port 10GbE SFP+ Server Adapter

The Solarflare® SFN8522-PLUS dual-port 10GbE Flareon Ultra and SFP+ PCIe 3.1 Flareon server I/O adapter delivers faster and more efficient processing of network traffic to accelerate a wide range of application. This adapter accelerate, monitor and secure your network by providing ultra-low latency, 30 Mpps high packet rate, 8 lanes PCIe 3.0 for full 2 x 10 Gbps bi-directional performance. The 8 lanes of PCIe 3.1 minimizes latency and maximizes bus throughput between the adapter and the host. The adapter features revolutionary tamper resistant adapter security.

• Server adapter supports 1G 1000BASE-T SFP modules
• Dimensions: 2.7″H x 5.3″W
• Compatible with server
• Comes in silver color
• Interface/ports: PCI Express 3.1 x8, 2 x 10GbE SFP+
• Data transfer rate: 10 Gbps
• Packet rate: 30 Mpps TX and RX (15 Mpps per port)
• Ethernet technology: 10 Gigabit Ethernet
• Advanced packet filtering: 4096 multicast filters/VLANs, adaptive TCP/UDP/IP, MAC, VLAN, RSS
• Power consumption: 7.3 W (typical)
• Operating system: RHEL 6, 7, MRG, SLES 11, 12, SLERT, Debian 7.x, 8.x, Ubuntu 14.04 LTS, Linux, Windows Server
• Management: SNMP, ACPI v3.0
• Form factor: Plug-in module
• Meets RoHS, IEEE802.3-2012, 802.3bx, 802.3bd, 802.3x, 802.3ae, 802.3z standards

Specifications
