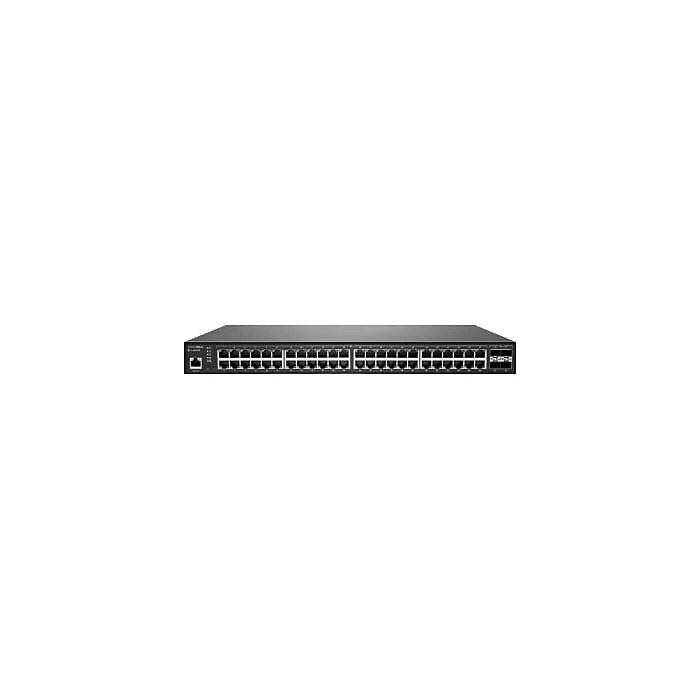

The Sonicwall switch delivers high-speed network switching while providing unparalleled performance and manageability through SonicWall firewalls or Wireless Network Manager. Its unified security posture, high port density, Power over Ethernet (PoE) options and Gigabit or 10 Gigabit performance capabilities makes it perfect for small and medium-sized business (SMB), and Software-Defined Branch (SD-Branch) deployments. This enables businesses – big or small, to undergo digital transformation and keep pace with the changing network and security landscape.
- Switch delivers high-speed network switching while providing unparalleled performance and manageability through SonicWall firewalls or Wireless Network Manager
- Contains 48 Gigabit Ethernet ports and four SFP+ ports
- Managed via firewalls or Wireless NetworkManager (WNM) for unified, single-pane-of-glass management
- Dimensions: 1.73″H x 17.32″W x 12.2″D
- Power consumption (maximum): 885W
- Certifications and standards: Meets or exceeds FCC, ICES, CE (EMC Class A, LVD, RoHS), C-Tick, VCCI Class A, UL cUL, TUV/GS, CB, Mexico UL DGN notification, WEEE, REACH, BSMI, KCC/MSIP, ANATEL standards
- Offers a compact form factor with an energy-efficient design
- Prioritizes certain traffic on the network such as VOIP for video conferences while working from home, with features such as QoS
- Features centralized VLAN configuration, static/dynamic LAG, STP, LLDP/MED, static routing, IPv4 management, SSH, firewall management, standard CLI and Web GUI interface, software upgrade/downgrade via TFTP/Firewall/GUI
- Security and visibility: 802.1x authentication, Syslog Collection, IP/MAC ACL, ACL, IEEE 802.1x authentication port-based, IEEE 802.1x Guest, and Fallback VLAN
- Includes 3-year 24×7 support
Specifications
| Amperage (amps) | 12 |
|---|---|
| Data Rate Performances | 10/100/1000Mbps |
| Depth in Inches | 12.2 |
| Full-Duplex | Yes |
| Gaming | Non Gaming |
| Height in Inches | 1.73 |
| Input Voltage | 100–240 |
| Layer | 2 |
| Module Support | SFP, SFP+ |
| Network Management Type | Managed Switch |
| Number of Ethernet Ports | 48 |
| Performance Class | Gigabit Ethernet |
| Power Supply | 900W Fixed |
| Power over Ethernet | Yes |
| Quality of Service | Yes |
| SNMP | No |
| Switch Form Factor | Rack Mountable |
| True Color | Black |
| VLAN Support | Yes |
| Weight (lbs.) | 10.58 |
| Width in Inches | 17.32 |
