StarTech PCI2S5502 Network Adapter PCI To DB-9

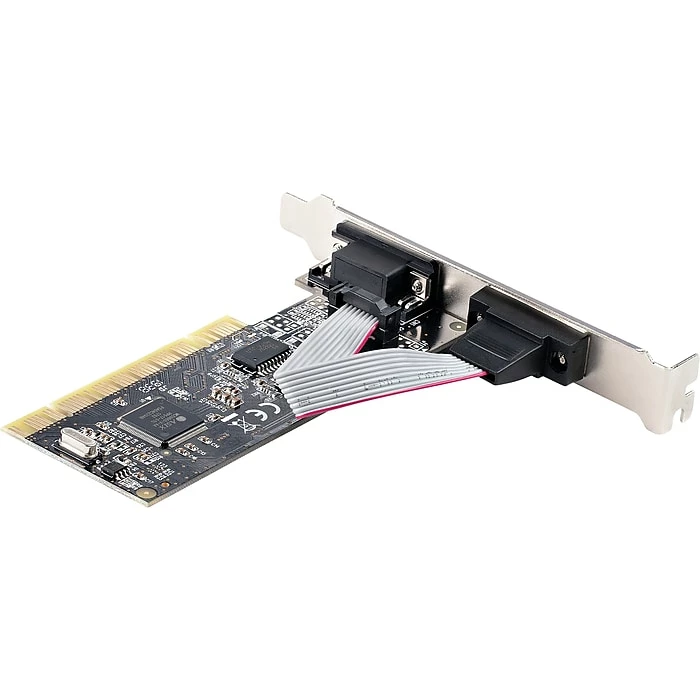

This StarTech multiport PCI RS232 serial adapter card lets you add two RS232 (DB9) serial ports to your computer through a PCI slot, as if they were native serial ports. The dual port PCI serial card enables you to interact with serial devices, such as card readers, printers, PIN pads, and modems, at speeds of up to 115.2Kbps. With broad OS support, including for Windows (7 and up), and Linux (2.6.x to 5.x LTS versions only), this 2 port PCI serial card is easy to integrate into mixed environments. The card comes pre-configured with a full-profile bracket, and includes optional low-profile brackets, so installation is easy regardless of the case form factor. This card is a direct replacement for PCI2S550_LP and PCI2S550.

• This multiport PCI RS232 serial adapter card lets you add two RS232 (DB9) serial ports to your computer through a PCI slot, as if they were native serial ports
• Enables you to interact with serial devices, such as card readers, printers, PIN pads, and modems, at speeds of up to 115.2Kbps
• Dimensions: 4.7″H x 0.9″W x 5.3″D
• Supports the following features: baud rate up-to 115.2Kbps; 256-byte depth FIFO cache per transmitter and receiver; 9, 8, 7, 6, 5 data bits (one per port); Asix MCS9865 chipset; low and full-profile brackets included
• Connect point of sale terminals, serial printers, PLCs, scientific sensors, medical equipment, scanners and oscilloscopes to your computer via the added serial ports
• Supports Windows 7 and up, Linux 2.6.x to 5.x

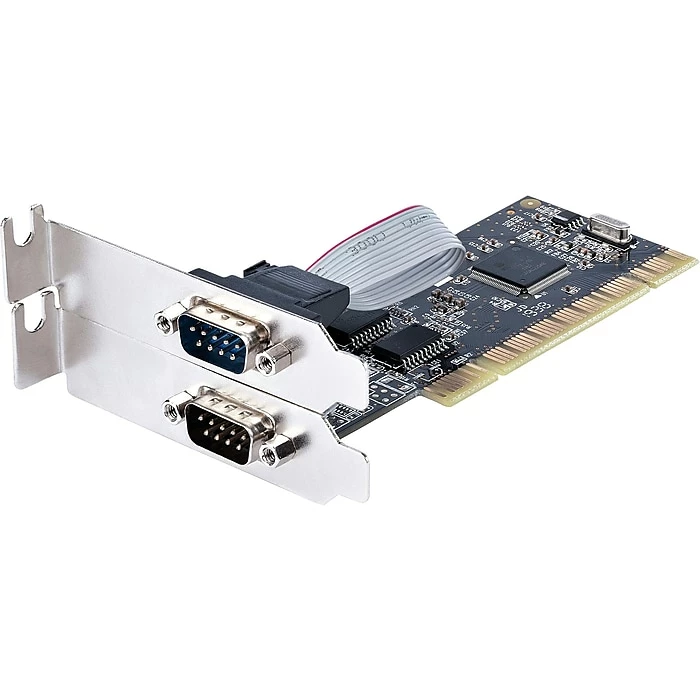

• PCI multiport serial COM card installs using 1x standard bracket (pre-installed) or 2x low profile brackets (included)
• Meets or exceeds 16C550 UART standard
• Lifetime manufacturer limited warranty
