StarTech ST10GSPEXNDP Dual-Port 10Gb PCIe Network Card, Black

This dual-port 10Gb PCIe network card offers a versatile and low-cost way to deploy 10GbE network connectivity. It adds two copper Ethernet ports to your server or desktop computer and provides Multi Gigabit Ethernet access to your network at five speeds: 10G, 5G, 2.5G, 1G and 100Mbps. The 10GBASE-T NIC provides additional bandwidth using your existing Ethernet infrastructure to help reduce the cost of cabling upgrades. The network adapter card adds two Ethernet ports to your workstation through an x8 PCIe 2.X (or higher) slot. It features 10GBASE-T technology, supporting advanced Multi-Gigabit systems, including Cisco campus switches and Aruba Networks access points. The NIC card also supports additional features including 9K Jumbo Frames, Autonegotiation, Auto-MDIX and 802.1q VLAN tagging. The dual Tehuti TN4010 + Marvell 88X3110 chipset, compliant with IEEE 802.3az, ensures peak operation and reduced power consumption. The decreased consumption minimizes the heat generated to avoid operating temperatures increasing within your server case.

• Dual-port 10Gb PCIe network card
• Dimensions: 4.8″H x 6.3″W x 0.8″D

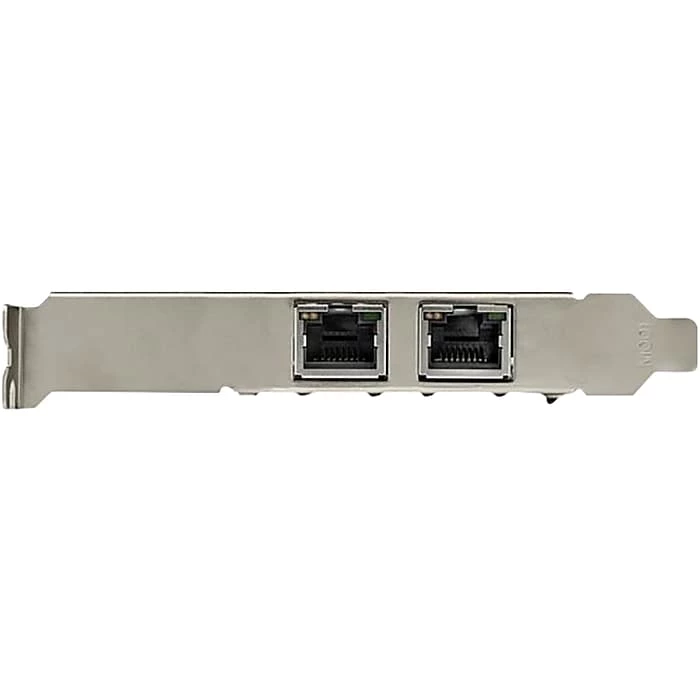

• Features one PCI Express x8 male and two RJ45 female external ports
• Comes in black color
• Meets or exceeds IEEE 802.3an (10GBASE-T), IEEE 802.3ab (1000BASE-T), IEEE 802.3u (100BASE-T), IEEE 802.3ad (link aggregation), IEEE 802.1q (VLAN tagging), PCI Express Rev 2.0, RoHS, and REACH standards
• Offers Multigigabit Ethernet connectivity with five network speeds: 10Gbps, 5Gbps, 2.5Gbps, 1Gbps, and 100Mbps
• Supports 2.5 and 5Gbps network speeds on CAT5e cabling and 10Gbps on CAT6a
• Chipset ID: Tehuti TN4010, Marvell 88X3110
• Card type: standard profile
• Interface: RJ45 (10 Gigabit Ethernet)
• Compatible with both 10GBASE-T and NBASE-T specifications
• Features two link speed and two link/activity LED indicators
• Compatible with Windows 7/8/8.1/10, Windows Server 2008 R2/2012/2012 R2/2016/2019, macOS 10.12 to 10.14, Linux 3.x to 4.14 LTS versions only, VMWare ESXi 5.0/5.1/6.0/6.5

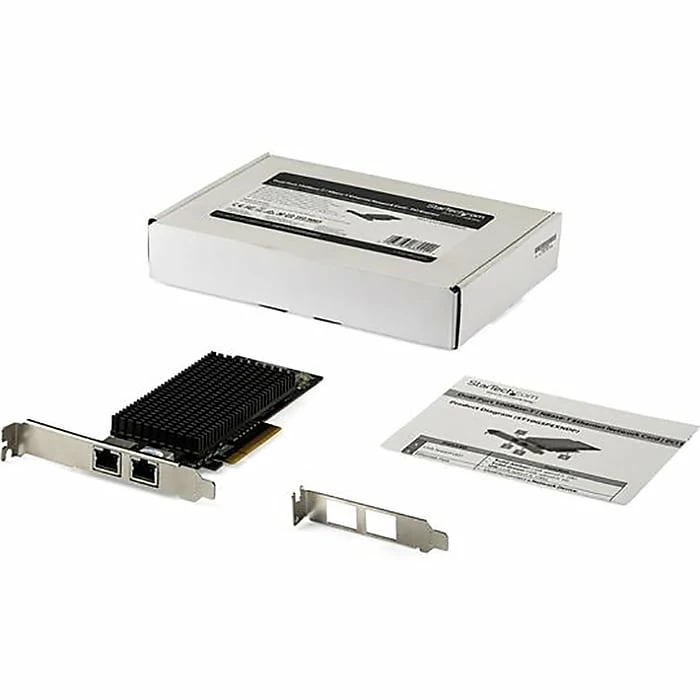

• Package includes: one network adapter card, low-profile bracket, quick-start guide
• 2-year manufacturer limited warranty
