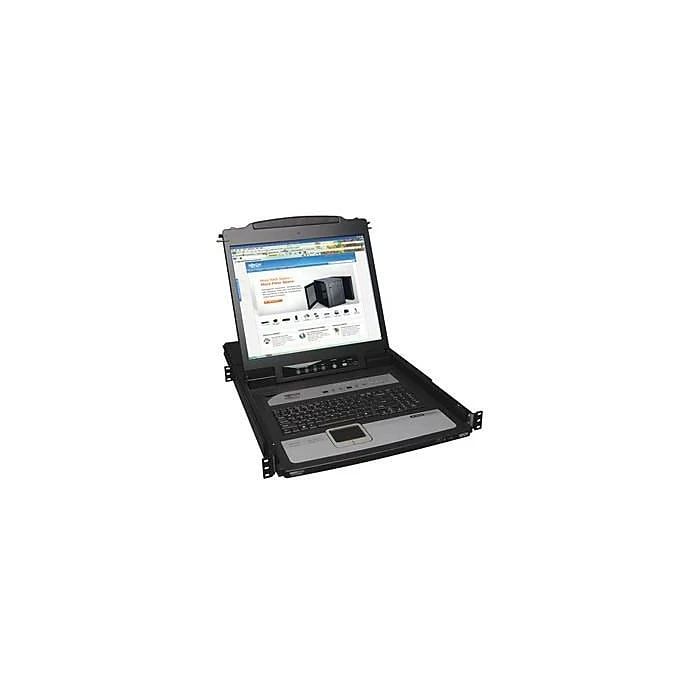

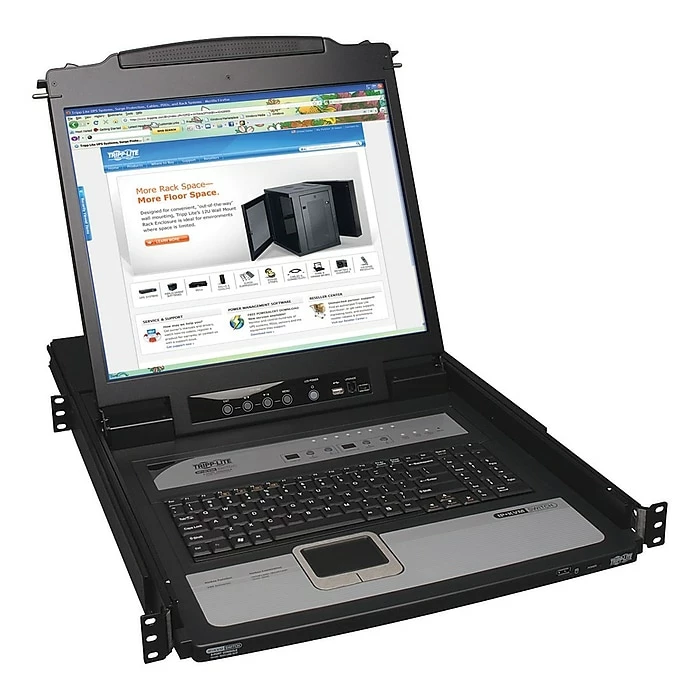

Tripp Lite® NetDirector B020-U08-19-IP 8 Port 1U Rack Mount Console KVM Switch

The Tripp Lite® NetDirector B020-U08-19-IP 8-Port 1U rack-mount console KVM switch in black, is compatible with PC and has heavy-duty steel housing. It requires a power supply of 100 – 250 V at 50/60 Hz. This switch has 19″ LCD display with flip-up/fold-down screen keeps console from blocking access to rack equipment when not in use. It supports both IPv4/IPv6 and network interfaces. It comes with a remote access to control servers from anywhere. This KVM switch has PS/2 and two USB interface for reliable connectivity.

• KVM switch manage the computing resources
• Dimensions: 1.73″ x 18.9″ x 27″
• Compatibility: PC
• Color: Black, Housing: Heavy-duty steel
• Interfaces/ports: PS/2, two USB
• Form factor: 1U rack mount
• Power supply: 100 – 250 V 50/60 Hz, 120 V (0.8 A)/230 V (0.4 A)
• Display: 19″ LCD
• Port control: Push buttons, hotkeys, OSD
• Flip-up/fold-down screen keeps console from blocking access to rack equipment when not in use
• Remote access offers convenience of controlling servers from anywhere, no need to travel to the server room or network closet
• Supports both IPv4 and IPv6 and network interfaces TCP/IP, HTTP, HTTPS, RADIUS, DHCP, SSL, ARP, DNS, 10Base-T/100Base-TX, auto sense and ping
• Log server tracks events on your installation, extra-wide display makes multitasking easier, supports video resolutions up to 1280 x 1024
• Temperature: 0 to 50 deg C operating, -20 to 60 deg C storage, Humidity: 0 – 80 percent RH, non-condensing
• Includes KVM switch, P778-series 6′ USB/PS2 combo KVM cable kits, USB/PS2 combo external console cable kit, grounding wire
• Meets UL, cUL, CE, FCC, RoHS certifications and standards
• Weight: 31 lbs.
• Comes with 1 year limited warranty

Specifications
