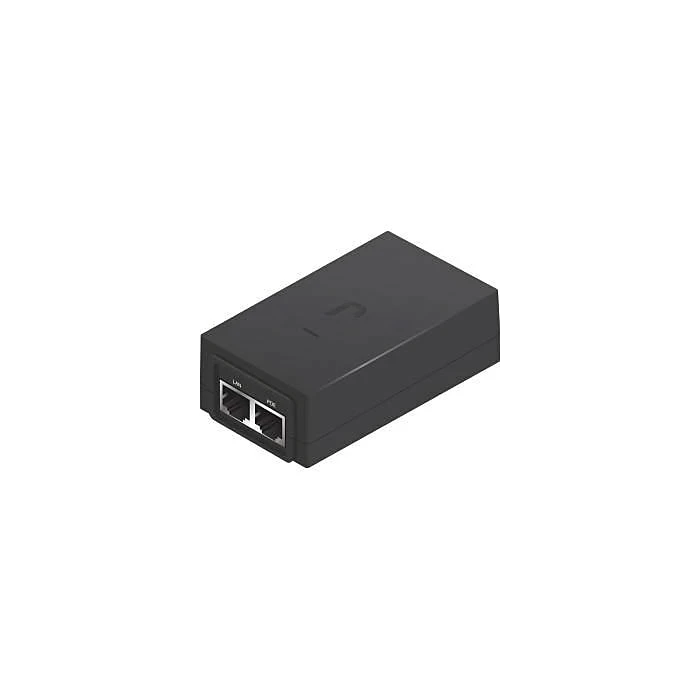

Ubiquiti™ Networks™ 50 VDC 60 W Power Over Ethernet Injector

Ubiquiti™ Networks™ 50 VDC 60 W Power over Ethernet injector features RJ-45 input/output port to deliver high-speed internet. Injector comes with USA power cord features an power LED to indicate status and has input voltage of 110 – 220 VAC.

• Frequency: 47 – 63 Hz, 65 kHz switching
• Dimensions: 1.3″(H) x 3.97″(W) x 2.36″(D)
• Interfaces/ports: Input ports: 1 x RJ-45 ethernet, output ports: 1 x RJ-45 ethernet
• Power: Output power: 60 W, input voltage: 110 – 220 VAC, 50 VDC output, input current: 1.3 A at 110 VAC, 750 mA at 220 VAC
• Efficiency: 85+%, output ripple: 1%, regulation: + or – 1% line, + or – 3% load, peak pulse current: 36A (10/1000microsecond) data
• Operating temperature: -10 – +60 deg C, Operating humidity: 5 – 90% non condensing
• Surge protection: Difference and common mode, clamping protection: 11 V data, 60 V power
• Shunt capacitance:
• Compatibility: Rocket-Ti, UAP-Pro
• Certifications and standards: IEC 60950-1:2005+A1, UL60950-1, EN55022:2010, EN55024:2010, FCC Class B
• Weight: 6.77 oz.

Specifications
